Ready-loaded front
Twenty-four fixed RJ45 ports provide a consistent front presentation without sourcing separate keystone modules.
PP-5E-24L · Cat5e · 24 Port · 1U
SUNPU product reference
Connectivity / Loaded Patch Panel

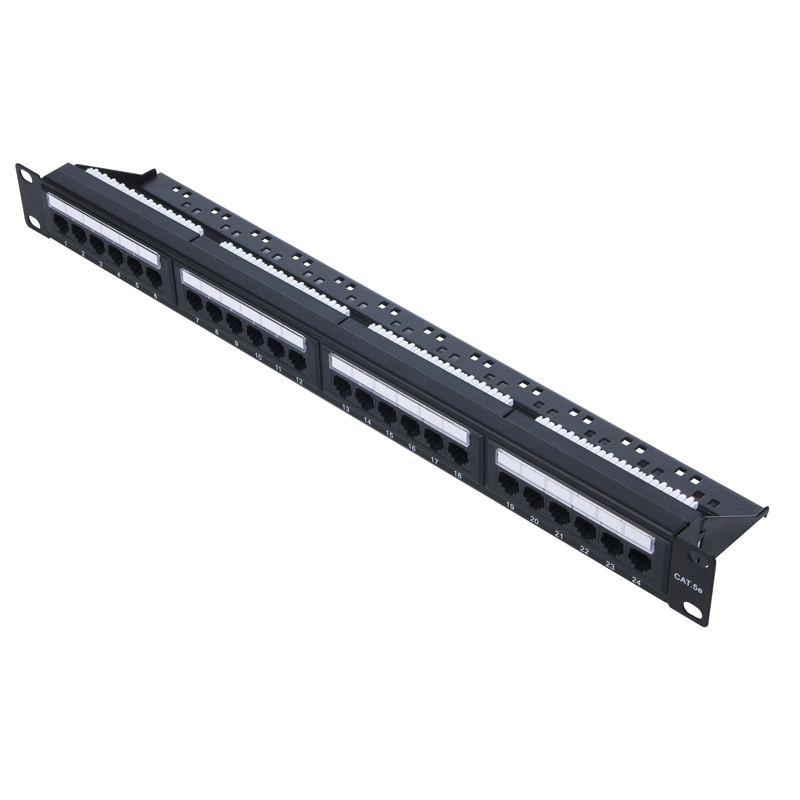

Cat5e 1U 24-Port Loaded Patch Panel
A factory-loaded 1U Cat5e patch panel for standard 19-inch racks, with numbered ports, rear termination, and an integrated cable-support frame.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Rear support included
The cable-support frame helps route and restrain horizontal cable behind the termination field.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- PP-5E-24L
- Product category
- Connectivity / Loaded Patch Panel
- Typical use
- Building distribution racks · Office equipment rooms · Maintenance and retrofit projects
Confirm these order fields
- T568A / T568B labeling
- Rear termination style
- Port and rack labels
- OEM carton and accessory pack
Factory handling
How SUNPU handles PP-5E-24L
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
T568A / T568B labeling, Rear termination style, Port and rack labels are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Rack height
- 1U
- Port count
- 24 RJ45 ports
- Shielding reference
- UTP
- Wiring reference
- T568A and T568B
- Rack format
- 19-inch, 1U
- Category
- Category 5e
- Termination
- Rear IDC termination
- Identification
- Numbered front labels
Specification evidence
Specifications to confirm
Published Cat5e UTP 1U 24-port RJ45 panel configuration
SUNPU published product reference ↗Reviewed 2026-10-26. Only explicitly stated configuration details are used. Performance, certification, plating thickness and tested compatibility require the exact model documents.
- 01Panel body depth, mounting-hole drawing and tolerances
- 02Matched jack or IDC conductor range for the supplied version
- 03Exact metal, finish, thickness, supplied hardware and pack quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01T568A / T568B labeling
- 02Rear termination style
- 03Port and rack labels
- 04OEM carton and accessory pack
Compatibility checklist
Confirm the complete system
Mount in standard 19-inch rack rails
Use Cat5e or higher patch cords
Confirm IDC tool, wiring scheme, and conductor range
Typical applications
Building distribution racks
Office equipment rooms
Maintenance and retrofit projects
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- T568A / T568B labeling
- Rear termination style
- Port and rack labels
- Required quantity and destination
- Target standard or project specification
- Packaging, labels, and document requirements
