Continue the shielded path
Shielded plugs and the foil-screened cord support continuity between compatible panels and equipment when the rack grounding plan is correct.
PC-5E-F26 · Cat5e · FTP · 26AWG
SUNPU product reference
Copper / Shielded Patch Cord

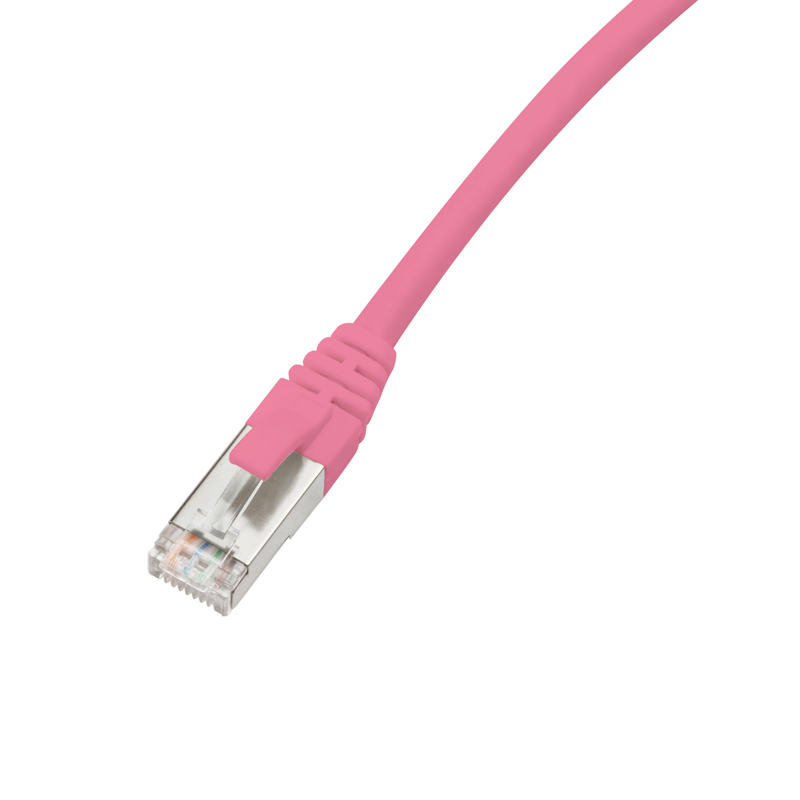

Cat5e FTP 26AWG Shielded Patch Cord
A foil-screened Cat5e patch cord for everyday shielded channels, configured by finished length, jacket, color, molded plug, labeling, and the required inspection basis.
Ask about PC-5E-F26 on WhatsApp ↗View product familyView Cat5e Patch CordView Shielded Ethernet Patch Cord
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Order by the finished assembly
Cable construction, plug, molding, pinout, length, color, labels, packaging, and test expectation belong to one approved cord configuration.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- PC-5E-F26
- Product category
- Copper / Shielded Patch Cord
- Typical use
- Shielded office patching · Building-control cabinets · Maintenance and replacement stock
Confirm these order fields
- Finished length and tolerance
- Jacket material and cable color
- Boot and molding profile
- Labels, individual bag, and carton artwork
Factory handling
How SUNPU handles PC-5E-F26
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
Finished length and tolerance, Jacket material and cable color, Boot and molding profile are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Conductor gauge (catalogue)
- 26 AWG
- Conductor strand construction
- 7 × 0.16 mm per conductor
- Cable diameter (PVC reference)
- 4.8 mm or 5.4 mm; select the construction
- Insulation material
- HDPE
- Jacket material (reference)
- PVC
- Connector construction
- Moulded RJ45 plug assembly
- Category
- Category 5e
- Shielding
- Overall foil-screened patch-cable direction
- Conductor
- 26AWG stranded bare-copper direction on the published reference
- Connector
- Shielded molded RJ45 plugs
- Jacket
- PVC / LSZH / project material options subject to confirmation
Specification evidence
Specifications to confirm
Cat5e 26 AWG FTP moulded PVC family, MF5E catalogue codes; right half of PDF page 5
SUNPU Copper Cabling Reference Catalogue ↗Reviewed 2026-10-26. These are published catalogue reference construction details, not an independent test report or a certificate. Confirm the quoted variant and approved sample; different jacket, gauge or OEM options can change the dimensions. One colour row is printed 27 AWG, unlike the 26 AWG heading and other rows. Confirm the selected colour and gauge in the quotation.
- 01Approved construction drawing and dimensional tolerances
- 02Model-specific test report and requested standard
- 03Finished unit weight, inner pack and carton quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01Finished length and tolerance
- 02Jacket material and cable color
- 03Boot and molding profile
- 04Labels, individual bag, and carton artwork
Compatibility checklist
Confirm the complete system
Use with shielded Cat5e or higher RJ45 ports
Confirm grounding and bonding across the complete channel
Check plug and boot clearance in the selected equipment
Typical applications
Shielded office patching
Building-control cabinets
Maintenance and replacement stock
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- Length and color schedule
- Shielded-channel and grounding basis
- Jacket, boot, and packaging requirements
- Required quantity and destination
- Target standard or project specification
- Packaging, labels, and document requirements
