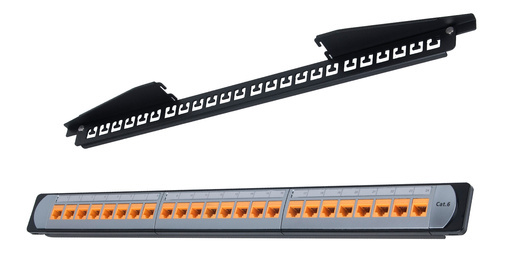

3 catalogue models · UTP · 24 Port · 1U · LoadedSUNPU 19-inch 1U Cat5e/Cat6/Cat6A UTP 24-Port Patch Panel catalogue model series 07
SUNPU product reference

Connectivity / Loaded Patch Panel

19-inch 1U Cat5e/Cat6/Cat6A UTP 24-Port Patch Panel - Series 07

SUNPU SP-PP Series 07 Cat5e-Cat6A 24-port UTP loaded Ethernet patch panel. Compare exact models, rack fit, labels, rear support, and OEM options.

UTP24 Port1ULoaded
Request configuration review →Ask on WhatsApp ↗View product familyCompare this model

Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.

View source catalogue · page 6 ↗

Product overview

Key product considerations

01

Exact series selection

Series 07 is kept separate because its front layout, rear construction, and service access differ from the other catalogue panels.

02

Loaded construction controls the BOM

Confirm category, shielding, termination block, rear support, grounding, and included accessories against the quoted model.

03

Rack elevation review

Coordinate the panel with switches, horizontal managers, patch-cord diameter, labeling, rear cable routing, and available rack space.

Published catalogue models

Select the exact item code for quotation.

These codes and descriptions are transcribed from the supplied SUNPU catalogue. Final performance, construction, and documents remain subject to exact-model confirmation.

Item codeCatalogue description
SP-PP-C5E-07UTP CAT5E TYPE
SP-PP-C6-07UTP CAT6 TYPE
SP-PP-C6A-07UTP CAT6A TYPE

Specifications

Core product specifications

Published model codes
SP-PP-C5E-07 / SP-PP-C6-07 / SP-PP-C6A-07
Published category rows
UTP CAT5E TYPE / UTP CAT6 TYPE / UTP CAT6A TYPE
Rack / mounting format
19-inch, 1U
Port count
24 ports
Configuration
Loaded patch panel
Channel direction
UTP; Cat5e, Cat6, or Cat6A item codes
Published termination direction
110 / Dual / Krone IDC
Not published in source
Overall dimensions, material and finish specification, included hardware, port-label format, and packing data require exact-model confirmation
Catalogue evidence
SUNPU Keystone Jack, Patch Panel & Cable Management Catalogue, page 6

Configuration options

Available product options

Use these fields to turn a broad product name into an orderable configuration.

  1. 01Select the exact Series 07 Cat5e, Cat6, or Cat6A item code
  2. 02Confirm the published UTP direction
  3. 03Define port numbering, label fields, rear support, grounding, and accessories
  4. 04State logo, carton, sample, and documentation requirements in the RFQ

Compatibility checklist

Confirm the complete system

Match horizontal cable, wiring scheme, and patch cords to SP-PP Series 07

Reserve the published 1U mounting space and confirm the rack format

Review rear cable support, grounding where applicable, labeling, and adjacent cable management

Typical applications

01

Telecom-room rack termination

02

Copper cross-connect organization

03

Fixed loaded-panel deployment

RFQ checklist

Information required for quotation

Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
