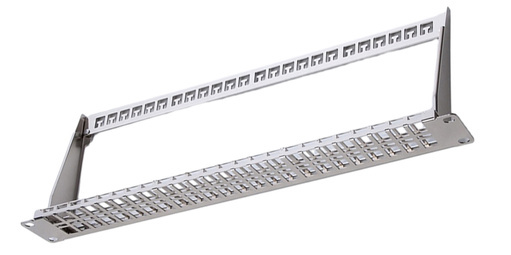

3 catalogue models · UTP/STP · 24 Port · 1U · Blank / UnloadedSUNPU 19-inch 1U 24-Port UTP/STP Blank Patch Panel catalogue model series 22
SUNPU product reference

Connectivity / Unloaded Patch Panel

19-inch 1U 24-Port UTP/STP Blank Patch Panel - Series 22

SUNPU SP-PP Series 22 Cat5e-Cat6A 24-port UTP/STP unloaded keystone patch panel. Compare exact models, rack fit, labels, rear support, and OEM options.

UTP/STP24 Port1UBlank / Unloaded
Request configuration review →Ask on WhatsApp ↗View product familyCompare this model

Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.

View source catalogue · page 7 ↗

Product overview

Key product considerations

01

Exact series selection

Series 22 is kept separate because its front layout, rear construction, and service access differ from the other catalogue panels.

02

Module fit controls the BOM

Approve the exact keystone model, latch fit, body depth, shield contact, and neighboring-port clearance with the panel.

03

Rack elevation review

Coordinate the panel with switches, horizontal managers, patch-cord diameter, labeling, rear cable routing, and available rack space.

Published catalogue models

Select the exact item code for quotation.

These codes and descriptions are transcribed from the supplied SUNPU catalogue. Final performance, construction, and documents remain subject to exact-model confirmation.

Item codeCatalogue description
SP-PP-C5E-22UTP/STP CAT5E TYPE
SP-PP-C6-22UTP/STP CAT6 TYPE
SP-PP-C6A-22UTP/STP CAT6A TYPE

Specifications

Core product specifications

Published model codes
SP-PP-C5E-22 / SP-PP-C6-22 / SP-PP-C6A-22
Published category rows
UTP/STP CAT5E TYPE / UTP/STP CAT6 TYPE / UTP/STP CAT6A TYPE
Rack / mounting format
19-inch, 1U
Port count
24 ports
Configuration
Blank / unloaded patch panel
Channel direction
UTP/STP; Cat5e, Cat6, or Cat6A item codes
Not published in source
Overall dimensions, material and finish specification, included hardware, port-label format, and packing data require exact-model confirmation
Catalogue evidence
SUNPU Keystone Jack, Patch Panel & Cable Management Catalogue, page 7

Configuration options

Available product options

Use these fields to turn a broad product name into an orderable configuration.

  1. 01Select the exact Series 22 Cat5e, Cat6, or Cat6A item code
  2. 02Confirm the published UTP/STP direction
  3. 03Define port numbering, label fields, rear support, grounding, and accessories
  4. 04State logo, carton, sample, and documentation requirements in the RFQ

Compatibility checklist

Confirm the complete system

Approve the keystone-jack body and retention fit for SP-PP Series 22

Reserve the published 1U mounting space and confirm the rack format

Review rear cable support, grounding where applicable, labeling, and adjacent cable management

Typical applications

01

Telecom-room rack termination

02

Copper cross-connect organization

03

Modular keystone deployment

RFQ checklist

Information required for quotation

Attach a BOQ, drawing, reference sample, or target datasheet whenever available.

Start this inquiry →
