Quote the complete loaded panel
Use PP-C6-24L with the required port count and IDC version. Do not treat an unloaded keystone frame with separately selected modules as the same supplied item.
PP-C6-24L · Cat6 · 24 Port · Loaded
SUNPU product reference
Connectivity / Loaded Panel

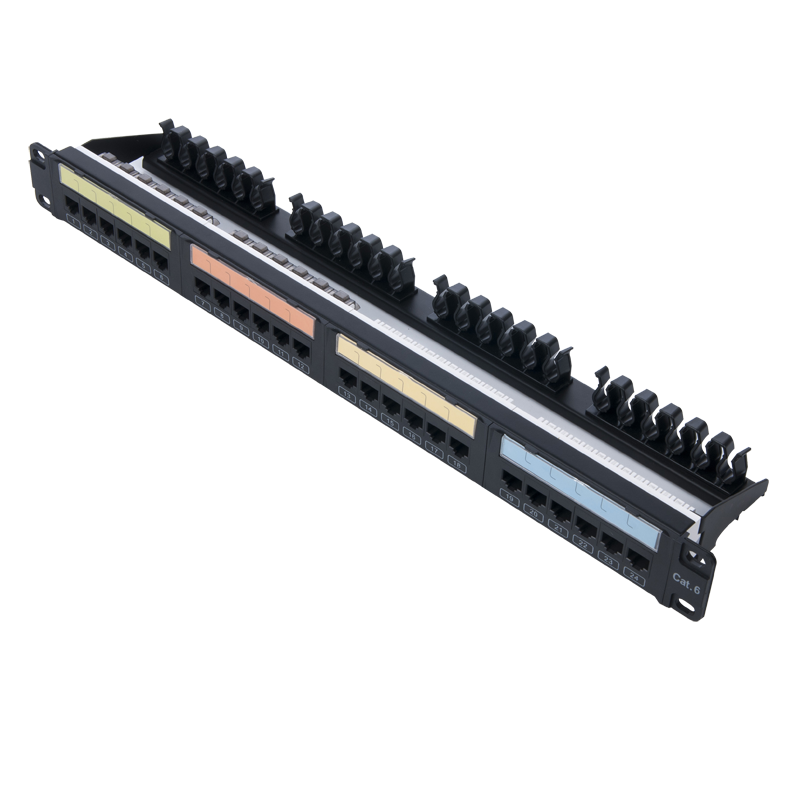

Cat6 24-Port Loaded Patch Panel, 1U 19-inch
PP-C6-24L is the SUNPU reference for a Cat6 24-port loaded patch panel in a 19-inch 1U format. The published manufacturer reference lists T568A/T568B wiring and 110 or Krone dual-type IDC options. Confirm the supplied termination version, support bar and fixing parts in the quotation.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Keep the termination version unambiguous
The manufacturer reference lists T568A/T568B and 110 or Krone dual-type options. Identify the actual supplied block and accepted conductor range before approving the cable schedule.
Check the rear assembly as well as the front
The reference describes a support-bar construction. Confirm panel depth, cable support, fixing hardware and the supplied-parts list on the exact order drawing; pack quantities are not published.
Selection & supplied configuration
Define the loaded panel and its supplied parts.
A clear panel order specifies the termination block and rear assembly, not only the category and number of front ports.
SUNPU published 24-port panel reference ↗PP-C6-24L
Cat6 / 24 ports / loaded / 19-inch 1U
- Published configuration
- The published reference describes 19-inch 1U rack fit, 24 ports, T568A/T568B wiring and 110 or Krone dual-type IDC options.
- Confirm before ordering
- Identify the actual supplied IDC version. Panel depth, conductor range, support bar, fixing parts and pack quantities require exact-order confirmation.
Compare the relevant construction
- 24-position unloaded keystone panel →
Choose this separate frame when the BOM specifies modules independently; approve their mechanical fit.
- SP-CM-21 five-ring cable manager →
Review as a separate rack accessory, not an included part of the loaded panel.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- PP-C6-24L
- Product category
- Connectivity / Loaded Panel
- Typical use
- Standard telecom rooms · Contractor project kits · Commercial rack builds
Confirm these order fields
- PP-C6-24L / Cat6 24-port loaded panel
- 110 or Krone dual-type termination version to confirm
- T568A or T568B project wiring schedule
- Rear support bar, fixing parts and packaging to confirm
Factory handling
How SUNPU handles PP-C6-24L
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
PP-C6-24L / Cat6 24-port loaded panel, 110 or Krone dual-type termination version to confirm, T568A or T568B project wiring schedule are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Rack format
- 19-inch, 1U
- Port count
- 24
- IDC options
- 110 or Krone dual type; specify the supplied termination block
- Wiring reference
- T568A and T568B
- Rear cable support
- Support-bar configuration described in the product reference
- Category
- Cat6
- Termination
- Rear IDC
Specification evidence
Specifications to confirm
Published Cat6 UTP 1U 24-port loaded panel configuration
SUNPU published product reference ↗Reviewed 2026-10-26. Only explicitly stated configuration details are used. Performance, certification, plating thickness and tested compatibility require the exact model documents.
- 01Panel body depth, mounting-hole drawing and tolerances
- 02Matched jack or IDC conductor range for the supplied version
- 03Exact metal, finish, thickness, supplied hardware and pack quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01PP-C6-24L / Cat6 24-port loaded panel
- 02110 or Krone dual-type termination version to confirm
- 03T568A or T568B project wiring schedule
- 04Rear support bar, fixing parts and packaging to confirm
Compatibility checklist
Confirm the complete system
Check the 19-inch 1U position and rear working space against the rack elevation
Confirm the actual IDC conductor range and termination tool against the supplied block
Review the cable schedule, support bar and fixing-parts list before approval
Typical applications
Standard telecom rooms
Contractor project kits
Commercial rack builds
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- PP-C6-24L reference and required quantity
- IDC version and T568A/T568B wiring schedule
- Cable conductor construction and dimensions
- Rack drawing, rear depth and required support/fixing parts
- Labels and packaging requirement
- Destination and exact-model document requirements
