90° entry with a punch-down workflow
Use this reference when reviewing the 90° UTP IDC configuration. A 180° toolless shielded jack is a different construction and needs its own cable and panel fit review.
KJ-C6-90U · Cat6 · 90° · UTP
SUNPU product reference
Connectivity / Keystone Jack

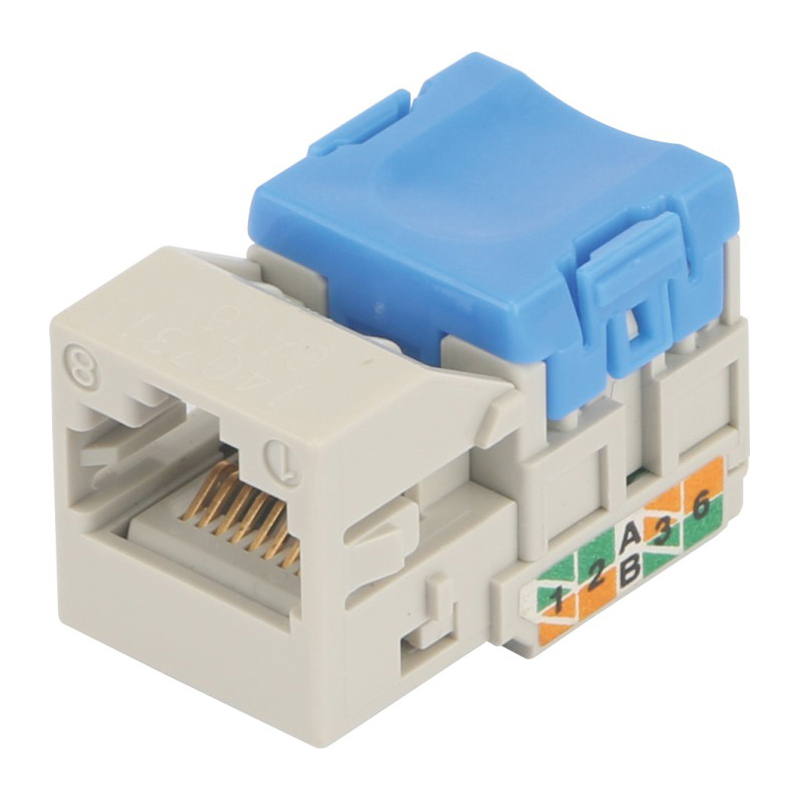

Cat6 90° UTP Punch-Down Keystone Jack
KJ-C6-90U is SUNPU's Cat6 unshielded RJ45 keystone-jack reference with a 90° cable-entry and IDC punch-down format. The published web description names T568B wiring. Confirm the body drawing, panel retention and accepted conductor range before selecting it for an installation.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Panel fit needs more than a keystone label
Check the jack body, latch, panel opening and rear working space together. Exact dimensions and approved panel combinations are not provided in the reviewed source.
Keep wiring and contact claims specific
The published description names T568B and gold-plated contacts. It does not specify plating thickness or the accepted conductor range; request those exact-model details where required.
Selection & supplied configuration
Confirm the 90° jack, cable and panel together.
The published reference establishes the product direction. It does not establish a universal panel fit or an accepted conductor range.
SUNPU published Cat6 90° jack reference ↗KJ-C6-90U
Cat6 / UTP / 90° IDC punch-down
- Published configuration
- Cat6 unshielded RJ45 reference with 90° cable entry. T568B and gold-plated contacts are stated in the manufacturer description.
- Confirm before ordering
- Body dimensions, latch geometry, IDC conductor range, plating thickness, exact-model tests and packing require confirmation.
Compare the relevant construction
- Series 33 / FTP 180° toolless dust-door jack →
Compare if the BOM calls for a shielded, toolless construction; select its category-specific item code.
- 24-position unloaded keystone panel →
Review the frame opening and jack retention together; listing both products is not a verified fit certificate.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- KJ-C6-90U
- Product category
- Connectivity / Keystone Jack
- Typical use
- Work-area outlets · Modular patch panels · Consolidation points
Confirm these order fields
- KJ-C6-90U / Cat6 90° UTP IDC reference
- Cable conductor construction and dimensions to review
- Panel or faceplate drawing and rear clearance to review
- Samples, contact documentation, labels and packing to confirm
Factory handling
How SUNPU handles KJ-C6-90U
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
KJ-C6-90U / Cat6 90° UTP IDC reference, Cable conductor construction and dimensions to review, Panel or faceplate drawing and rear clearance to review are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Connector interface
- RJ45
- Cable entry
- 90-degree entry
- Wiring reference
- T568B in the published product description
- Contact finish reference
- Gold-plated contacts stated in the product description; thickness not stated
- Format
- Standard keystone footprint
- Shielding
- Unshielded
- Termination
- IDC punch-down format
- Use
- Faceplate or unloaded patch panel
Specification evidence
Specifications to confirm
Published Cat6 unshielded 90-degree RJ45 keystone configuration
SUNPU published product reference ↗Reviewed 2026-10-26. Only explicitly stated configuration details are used. Performance, certification, plating thickness and tested compatibility require the exact model documents.
- 01Dimensioned body, keystone opening and rear-clearance drawing
- 02Accepted solid/stranded conductor gauge and cable outside-diameter range
- 03Contact plating thickness, material grades and model-specific test report
- 04Unit weight and inner/carton packing quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01KJ-C6-90U / Cat6 90° UTP IDC reference
- 02Cable conductor construction and dimensions to review
- 03Panel or faceplate drawing and rear clearance to review
- 04Samples, contact documentation, labels and packing to confirm
Compatibility checklist
Confirm the complete system
Confirm the panel opening, latch and rear clearance with the exact jack drawing
Check conductor dimensions, insulation and solid/stranded suitability against the approved IDC specification
Use the required wiring schedule and do not assume cross-model electrical or mechanical qualification
Typical applications
Work-area outlets
Modular patch panels
Consolidation points
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- KJ-C6-90U reference and required quantity
- Panel or faceplate drawing and rear cable route
- Cable conductor type, dimensions and outside diameter
- Required wiring schedule, sample and exact-model test documents
- Labels and packaging requirement
- Destination and required delivery schedule
