Flat route with defined limits
The low-profile body can fit selected edge routes, but bend direction, torsion, crush exposure, cable width, and connector exit still need review.
PC-8-FLT26 · Cat8 · Flat · 26AWG
SUNPU product reference
Copper / Flat Data-Center Patch Cord

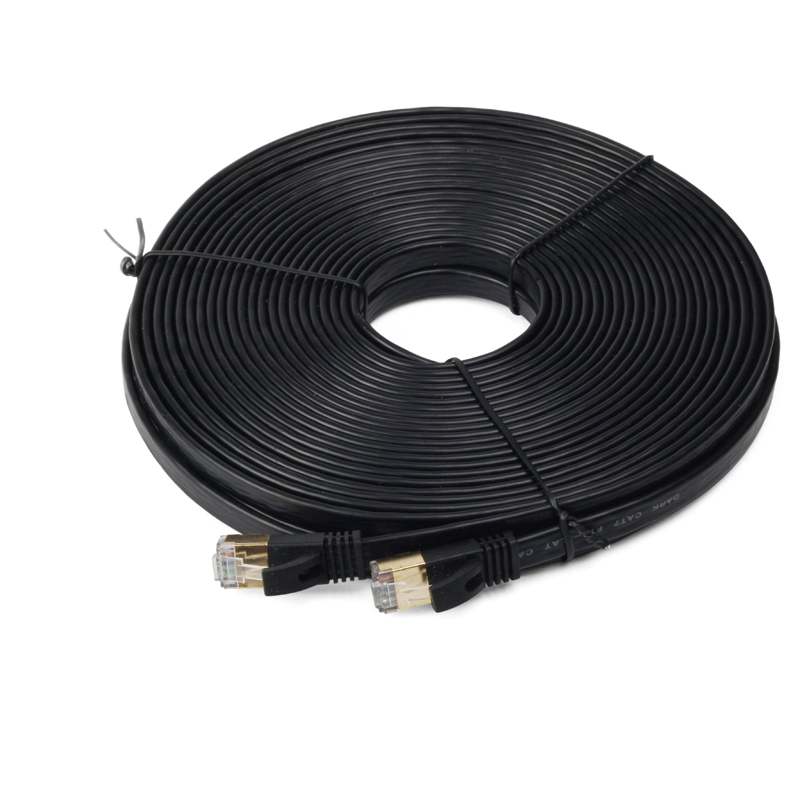

Cat8 Flat Shielded 26AWG Patch Cord
SUNPU Cat8 flat shielded 26AWG RJ45 patch cord for short equipment links and low-profile rack routes. Confirm channel, length, jacket, bend, labels, and packaging.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Cat8 is a complete-channel decision
Link length, connector count, shielding, grounding, equipment interface, and acceptance test basis should be agreed before the cord is quoted.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- PC-8-FLT26
- Product category
- Copper / Flat Data-Center Patch Cord
- Typical use
- Short equipment links · Low-profile edge and furniture routes · High-bandwidth test and demonstration links
Confirm these order fields
- Length and tolerance
- Jacket material and color
- Boot profile and latch protection
- Labels, test record, and packaging
Factory handling
How SUNPU handles PC-8-FLT26
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
Length and tolerance, Jacket material and color, Boot profile and latch protection are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Conductor gauge (catalogue)
- 26 AWG
- Conductor strand construction
- 7 × 0.16 mm per conductor
- Insulation material
- HDPE
- Jacket material (reference)
- PVC
- Connector construction
- Moulded RJ45 plug assembly
- Category
- Category 8 direction; exact model verification required
- Construction
- Flat shielded stranded patch cable
- Conductor
- 26AWG stranded bare-copper direction on the published reference
- Connector
- Shielded molded RJ45 plugs
- Jacket
- PVC / LSZH / project material options subject to confirmation
Specification evidence
Specifications to confirm
Cat8 26 AWG S/FTP flat PVC family, MSF8 catalogue codes; right half of PDF page 13
SUNPU Copper Cabling Reference Catalogue ↗Reviewed 2026-10-26. These are published catalogue reference construction details, not an independent test report or a certificate. Confirm the quoted variant and approved sample; different jacket, gauge or OEM options can change the dimensions. The printed flat-cable dimensions have a decimal/unit ambiguity. Overall width and thickness are not transferred; request the approved drawing.
- 01Approved construction drawing and dimensional tolerances
- 02Model-specific test report and requested standard
- 03Finished unit weight, inner pack and carton quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01Length and tolerance
- 02Jacket material and color
- 03Boot profile and latch protection
- 04Labels, test record, and packaging
Compatibility checklist
Confirm the complete system
Use with shielded RJ45 equipment or Cat8 channel components
Confirm the allowed channel topology and maximum length
Avoid tight folding, twisting, and unplanned pressure on the flat cable
Typical applications
Short equipment links
Low-profile edge and furniture routes
High-bandwidth test and demonstration links
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- Exact route and finished length
- Channel topology and acceptance test
- Jacket, color, and boot requirements
- Required quantity and destination
- Target standard or project specification
- Packaging, labels, and document requirements
