Easy to standardize
A defined length and color schedule makes everyday patching, spares, and moves easier to manage.
PC-5E-U24 · Cat5e · U/UTP · 24AWG
SUNPU product reference
Copper / Patch Cord

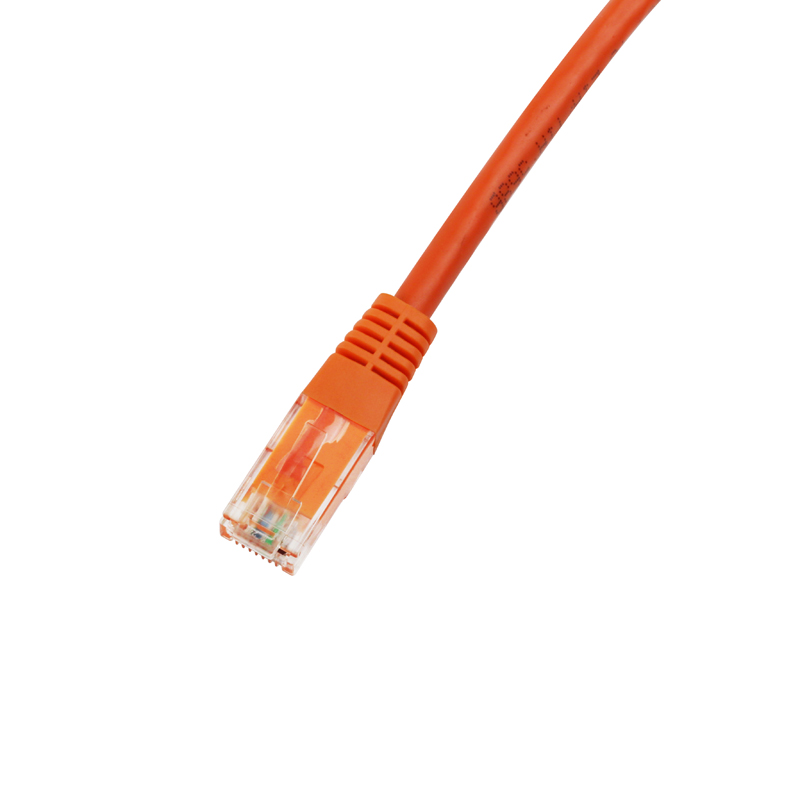

Cat5e UTP 24AWG Patch Cord
A conventional unshielded Cat5e patch cord for work-area outlets, patch panels, switches, IP devices, and maintenance stock.
Performance, standards, environmental rating, certification, MOQ, and lead time are confirmed against the exact construction and order requirement.
View SUNPU official product reference ↗Product overview
Key product considerations
Assembly details are order fields
Pinout, conductor, boot, jacket, label, bag, and test requirement are confirmed with the sample.
Model-specific purchase brief
Use the published model as the starting point for the RFQ.
This page identifies the current SUNPU catalogue reference. The final order remains tied to the approved construction, option list, documents, quantity, packaging, and destination requirement.
- Published reference
- PC-5E-U24
- Product category
- Copper / Patch Cord
- Typical use
- Work-area connections · Rack patching · Maintenance and replacement stock
Confirm these order fields
- Length and tolerance
- PVC / LSZH jacket
- Cable and boot color
- Label and retail or bulk packaging
Factory handling
How SUNPU handles PC-5E-U24
The product name starts the conversation. The approved construction and order record define what is actually supplied.
Approve the exact construction
Length and tolerance, PVC / LSZH jacket, Cable and boot color are reviewed before the model is released for production.
Carry buyer-facing details forward
Length, color, print, labels, packaging, quantity, and destination notes stay with the order specification.
Check documents by model
Available test records and compliance documents are confirmed for the exact construction, not borrowed from a related family item.
Specifications
Core product specifications
- Conductor gauge (catalogue)
- 24 AWG
- Conductor strand construction
- 7 × 0.20 mm per conductor
- Cable diameter (PVC reference)
- 4.8 mm or 5.4 mm; select the construction
- Insulation material
- HDPE
- Jacket material (reference)
- PVC
- Connector construction
- Moulded RJ45 plug assembly
- Cable
- 4-pair stranded Cat5e patch cable
- Connector
- Unshielded RJ45 molded plugs
- Wiring
- Straight-through T568A or T568B by requirement
- Boot
- Molded or snagless
- Length
- Standard and project-specific lengths
Specification evidence
Specifications to confirm
Cat5e 24 AWG U/UTP moulded PVC family, MU5E catalogue codes; left half of PDF page 5
SUNPU Copper Cabling Reference Catalogue ↗Reviewed 2026-10-26. These are published catalogue reference construction details, not an independent test report or a certificate. Confirm the quoted variant and approved sample; different jacket, gauge or OEM options can change the dimensions.
- 01Approved construction drawing and dimensional tolerances
- 02Model-specific test report and requested standard
- 03Finished unit weight, inner pack and carton quantities
Configuration options
Available product options
Use these fields to turn a broad product name into an orderable configuration.
- 01Length and tolerance
- 02PVC / LSZH jacket
- 03Cable and boot color
- 04Label and retail or bulk packaging
Compatibility checklist
Confirm the complete system
Use with Cat5e or higher RJ45 ports
Check boot clearance in dense switches
Keep the complete channel within the design length
Typical applications
Work-area connections
Rack patching
Maintenance and replacement stock
RFQ checklist
Information required for quotation
Attach a BOQ, drawing, reference sample, or target datasheet whenever available.
- Length and tolerance
- PVC / LSZH jacket
- Cable and boot color
- Required quantity and destination
- Target standard or project specification
- Packaging, labels, and document requirements
